Data Set Attributes Rules

Overview

Attribute rules are used to define under which condition a field shall become mandatory, visible and/or read-only. For each field specific rules can be defined on different data set entities. At runtime rules will be automatically executed to adapt the display of the field within the page.

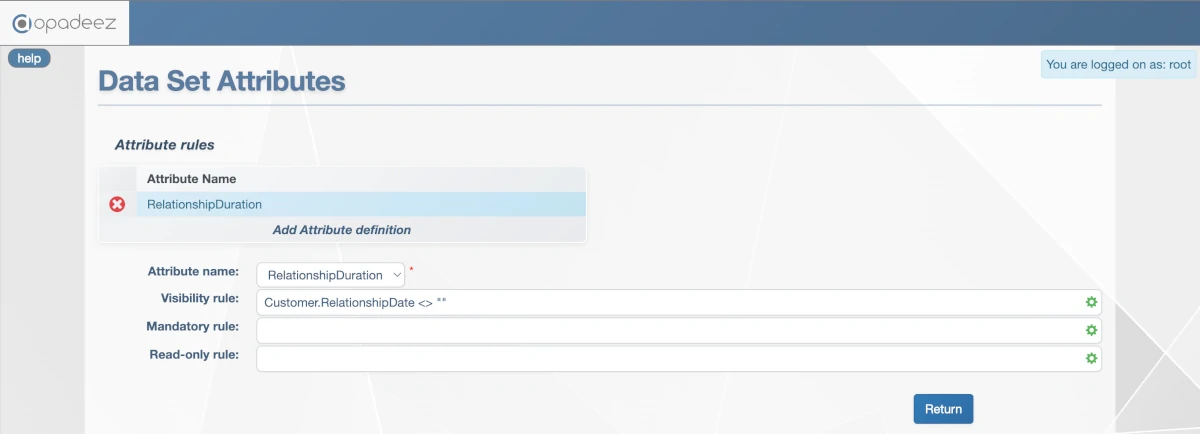

Data Set Attributes Rules interface for configuring field behavior conditions

Rule Types

Visibility Rule

• Purpose: Control when a field is visible to users
• Expression: Boolean expression that evaluates to true/false
• Behavior: Field appears only when the rule evaluates to true
• Use Cases: Show fields based on user selections or data conditions

Mandatory Rule

• Purpose: Control when a field becomes required
• Expression: Boolean expression that evaluates to true/false
• Behavior: Field becomes required when the rule evaluates to true
• Use Cases: Make fields mandatory based on other field values or conditions

Read-only Rule

• Purpose: Control when a field cannot be edited
• Expression: Boolean expression that evaluates to true/false
• Behavior: Field becomes read-only when the rule evaluates to true
• Use Cases: Prevent editing based on status, permissions, or data conditions

Rule Configuration

Attribute Name

• Purpose: Name of the attribute for which the rules apply
• Selection: Choose from available attributes in the data set entity
• Scope: Rules apply only to this specific attribute

Rule Syntax

The rules syntax is based on the Opadeez Scripting Language and supports:

• Boolean Expressions: true/false, comparisons, logical operators
• Field References: Access values from other fields in the data set
• Operators: =, <>, <, >, <=, >=, AND, OR, NOT
• Functions: Built-in scripting functions for complex logic

Dynamic Rule Behavior

Dynamic Updates

For example, if Field "A" has a visibility rule stating "B <> 0 AND C <> 0", it is necessary to have both fields B and C on the screen to allow A to become dynamically visible or hidden when the value of B and C changes. Otherwise, the visibility rule will be refreshed only when the page is refreshed.

Field Dependencies

• Screen Presence: All referenced fields must be present on the same screen
• Real-time Updates: Rules evaluate immediately when dependent field values change
• Page Refresh: Rules without screen dependencies only update on page refresh

Practical Examples

Conditional Visibility

• Rule: CustomerType = "Premium"
• Effect: Field only visible for premium customers
• Use Case: Show special pricing fields for premium customers only

Conditional Mandatory

• Rule: OrderAmount > 1000
• Effect: Field becomes required for high-value orders
• Use Case: Require approval signature for large orders

Conditional Read-only

• Rule: Status = "Approved"
• Effect: Field cannot be edited once approved
• Use Case: Prevent changes to approved documents

Complex Conditions

• Rule: UserRole = "Manager" AND Department = "Sales"
• Effect: Field visible only to sales managers
• Use Case: Role-based field visibility

Best Practices

Rule Design

• Simple Logic: Keep rules as simple as possible for maintainability
• Clear Conditions: Use descriptive field names and logical operators
• Test Thoroughly: Verify rules work correctly with various data combinations
• Document Rules: Comment complex rules for future maintenance

Performance Considerations

• Field Dependencies: Minimize the number of fields referenced in rules
• Screen Layout: Include all dependent fields on the same screen for dynamic updates
• Rule Complexity: Avoid overly complex expressions that impact performance
• Testing: Test rules with realistic data volumes

User Experience

• Logical Flow: Ensure rule behavior makes sense to users
• Clear Feedback: Provide clear indication when fields become mandatory
• Consistent Behavior: Apply similar rules consistently across the application
• Error Handling: Handle cases where rules cannot be evaluated

Common Use Cases

Progressive Disclosure

• Scenario: Show additional fields based on user selections
• Implementation: Use visibility rules to reveal relevant fields
• Benefit: Simplified user interface with contextual information

Data Validation

• Scenario: Make fields mandatory based on business rules
• Implementation: Use mandatory rules with conditional logic
• Benefit: Ensure data completeness for specific scenarios

Workflow Control

• Scenario: Prevent editing at certain workflow stages
• Implementation: Use read-only rules based on status fields
• Benefit: Maintain data integrity throughout process lifecycle

Role-Based Access

• Scenario: Show different fields to different user roles
• Implementation: Use visibility rules with user role conditions
• Benefit: Customized interface based on user permissions

Troubleshooting

Rules Not Working

• Check Syntax: Verify rule expressions use correct scripting syntax
• Field References: Ensure referenced fields exist and are spelled correctly
• Screen Dependencies: Confirm all referenced fields are on the same screen
• Data Types: Verify comparisons use appropriate data types

Performance Issues

• Complex Rules: Simplify overly complex rule expressions
• Field Count: Reduce the number of fields referenced in rules
• Rule Count: Minimize the total number of rules per screen
• Testing: Test with realistic data volumes and user scenarios
